Introduction to Engine Timing
The Importance of Timing in Internal Combustion Engines
Timing is one of the most critical factors for the smooth and efficient running of an internal combustion engine. It ensures that pistons and valves move in perfect sequence, allowing fuel and air to enter and exhaust gases to depart precisely when intended. Without proper timing, the engine cannot generate power efficiently or reliably. It can even result in engine damage if the parts collide due to mistimed movements.
Synchronisation of Pistons and Valves
To achieve precise synchronisation, the engine relies on a system that links the crankshaft (which moves the pistons) and the camshaft (which opens and closes the valves). The synchronised movement of these components is vital for optimal combustion. When the timing is off, even by a small fraction, it can lead to poor performance, higher emissions, and in severe cases, catastrophic engine damage.
Evolution and Overview of Timing Components
Traditionally, engines have used either chains or belts to connect the crankshaft and camshaft. Early vehicles used metal timing chains for robustness and reliability. Later, timing belts became popular due to their quiet operation and reduced weight. Over time, improvements in materials and design have shaped timing components to meet the evolving needs of modern vehicles. Both systems, though different in construction, share the same purpose: keeping vital engine parts in perfect harmony.
With this foundation, it is essential to understand how the engine cycle works and why precise timing matters for every journey.
Understanding the Basics of Engine Timing
The Four-Stroke Engine Cycle and Timing
The operation of most internal combustion engines relies on a cycle of four stages: intake, compression, power, and exhaust. For this process to work efficiently, precise timing is essential. The crankshaft is responsible for moving the pistons up and down within the cylinders, while the camshaft manages the opening and closing of the engine’s valves. Together, these components ensure fuel and air enter the combustion chamber at exactly the right moment, and exhaust gases exit smoothly.
During this four-stroke cycle, for every two rotations of the crankshaft, the camshaft completes one rotation. This relationship ensures each valve opens only once for every two piston movements. The proper synchronisation between these rotating parts is managed by a belt, chain, or gear system, designed to keep everything in perfect sync throughout engine operation.
The Role of Synchronisation
Synchronisation between the crankshaft and camshaft affects more than just basic operation. When timing is correct, the engine delivers smooth power, efficient combustion, and optimal fuel economy. Any deviation can disrupt this harmony, leading to various issues. For example, incorrect timing may cause the valves to open or close at the wrong times, risking collision between valves and pistons or causing poor combustion.
Consequences of Improper Timing
When engine timing drifts out of alignment, the consequences can be immediate or develop over time. Symptoms include rough running, reduced performance, excessive emissions, and sometimes loud knocking or rattling sounds. In severe cases, mistimed engines can suffer major internal damage if pistons strike open valves or combustion occurs at the wrong moment.

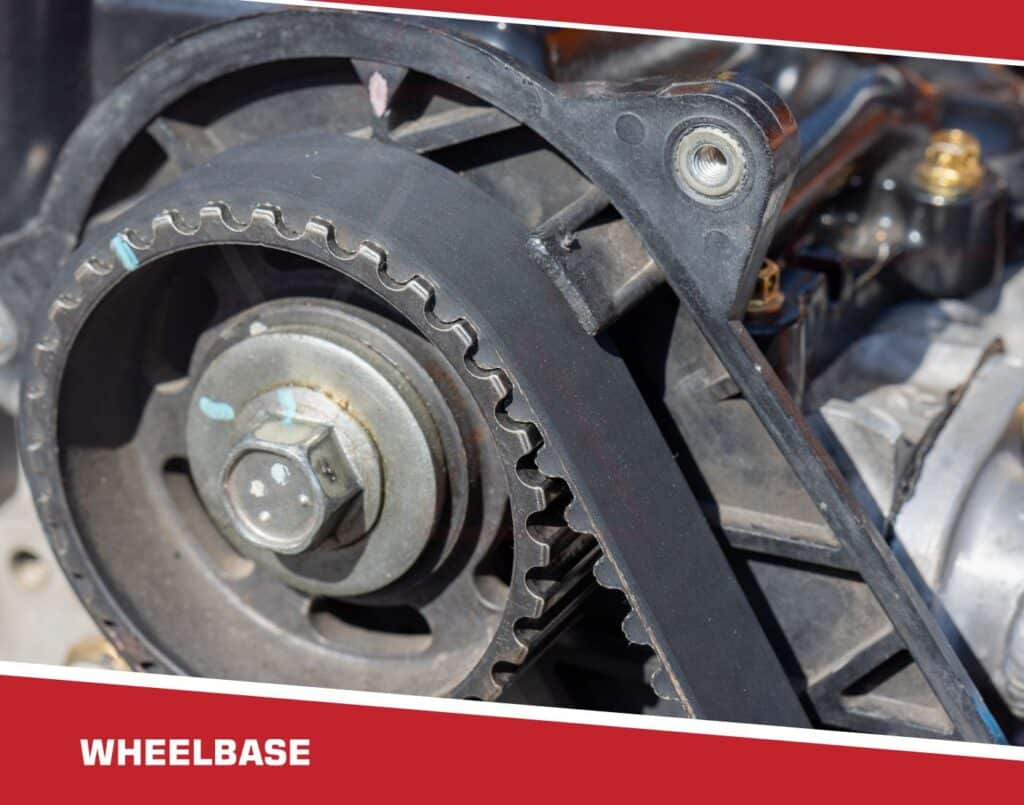

Timing Belts: Design and Function
Material Composition and Construction
Timing belts are primarily made from rubber, although some may use polyurethane or neoprene. Their structure is reinforced with strong corded fibres, such as fibreglass or Kevlar, to provide added strength and resistance to stretching. The inner side of the belt contains teeth or notches, often covered with a durable fabric, which help maintain precise engagement with the pulleys and ensure accurate timing within the engine Wikipedia.
Key Advantages
Timing belts offer several benefits in modern engines:
- Quieter Operation: Compared to chains, belts produce less noise during engine operation, enhancing cabin comfort.
- Lightweight: Their construction materials make belts lighter, aiding overall engine efficiency and performance.
- Cost-Effective: Timing belts are generally cheaper to manufacture and replace, contributing to lower maintenance costs throughout the vehicle’s life.
- Efficient Power Transmission: Properly maintained, belts can achieve high levels of efficiency with minimal slipping.
Typical Lifespan and Maintenance
The expected service life of a timing belt is usually between 60,000 and 100,000 miles, depending on vehicle make, model, and driving conditions. Regular inspection and timely replacement according to manufacturer guidelines are essential, as failure to replace a worn belt can lead to severe engine damage. Maintenance should also include checking tensioners and related components to ensure smooth operation.
A well-maintained timing belt is key to reliable engine function, setting the stage for understanding how other timing components operate in harmony.
Timing Chains: Structure and Benefits
Metal Composition and Design Features
Timing chains are made of robust metal links, usually steel alloys, which provide strength and resistance to stretching. These chains operate inside the engine, lubricated by engine oil. This internal positioning and continuous oil bath reduce friction and minimise wear, enhancing overall durability. Various types are used:
- Roller chains use cylindrical rollers between link plates to decrease friction and increase efficiency
- Silent (or inverted-tooth) chains feature specially shaped links for smoother and quieter operation
- Bush chains, an older design, use bushings and are less common in modern engines
Each design ensures effective synchronisation of the camshaft and crankshaft, a necessity for precise engine operation.
Benefits: Durability, Lifespan, and Maintenance
Timing chains offer a key advantage — longevity. Unlike timing belts, metal chains typically last for the engine’s lifetime if properly maintained. Regular oil changes are crucial, as clean oil keeps the chain lubricated, reduces friction, and prevents premature wear.
Benefits include:
- Exceptional durability in high-heat, high-pressure environments
- Extended service life, with many outlasting the vehicle
- Reduced frequency of maintenance compared to belts
However, they can develop problems if neglected, such as chain stretch or increased noise.
Common Applications in Engines
Timing chains are widely used in modern V6 and V8 engines, as well as increasingly in four-cylinder models where reliability is a priority. Diesel engines also often use bush or toothed chains for their durability. Ultimately, the timing chain’s robust structure makes it ideal for applications demanding longevity and strength.
Comparing Timing Belts vs. Timing Chains
Cost Over Time
Timing belts and timing chains differ greatly in cost and maintenance. Timing belts are made of reinforced rubber, making them cheaper and less expensive to install. However, belts require replacement every 60,000 to 100,000 miles. Replacing them promptly is vital, as waiting for failure can double the cost due to possible engine damage.
Timing chains, built from metal, often have higher initial replacement costs. Yet, they are designed to last as long as the engine, and many drivers never replace them over a vehicle’s lifetime.
Performance and Reliability
Timing belts provide smooth, consistent engine performance in normal driving conditions. They stretch less over time than older rubber designs, but still demand strict maintenance. Chains, on the other hand, are robust even in high-stress environments and are less likely to slip or break. Regular oil changes help extend timing chain life and ensure reliable function.
Noise and Comfort
Timing belts run more quietly and generally cause less vibration than chains. Chains can develop rattling noises as they wear, especially if engine maintenance is neglected. Some modern chains come with extra features to dampen sound, but timing belts remain the quieter option overall.
Each system has clear pros and cons, making the ideal choice dependent on a driver’s priorities for cost, maintenance, and driving experience. Understanding these differences prepares owners for the ongoing care that engine timing components require.
Additional Timing Components
Essential Support Parts for Timing Systems
Modern engine timing systems depend on more than just belts or chains. Several additional parts ensure these systems operate with accuracy and reliability.
Tensioners, Guides, and Idler Pulleys
Tensioners are designed to maintain the correct tension in the timing belt or chain, compensating for wear and thermal expansion. Without a properly functioning tensioner, a belt or chain could become slack, leading to skipped teeth or even complete system failure. Guides provide physical direction for the belt or chain, keeping them correctly aligned during operation.
Idler pulleys, mounted on stationary brackets, adjust the belt’s path and help source tension. This ensures the timing belt or chain remains in proper alignment, reducing wear and improving durability.
Integration of Water Pumps
Many cars use the timing belt or chain to drive the water pump. This integration allows the water pump to operate in sync with engine cycles, promoting efficient cooling. However, if the water pump fails, it can lead to overheating and, if left unchecked, cause severe engine damage. Replacing the water pump when servicing the timing belt is often recommended to avoid catastrophic issues.
Role of Sprockets and Gears
Sprockets and gears connect the belt or chain to both crankshaft and camshaft, transmitting motion to maintain exact timing between engine components. They control the position and speed of valves, making precise synchronisation possible. Wear or damage to these parts can disrupt timing accuracy and compromise engine efficiency.
Understanding these components highlights the complexity of keeping an engine’s timing exact. This helps explain why maintenance is crucial to engine health.
Signs of Timing Component Failure
Recognising Early Warning Symptoms
Identifying timing component issues early can help avoid major engine damage. One of the first warning signs is unusual noises from the engine. A worn timing belt or chain may produce ticking, squeaking, rattling, or knocking sounds. These noises suggest that the belt or chain is not moving smoothly or is misaligned, possibly accompanied by problems with the tensioner or guides. A rattling sound, especially on cold starts, may point to a stretched timing chain, while squealing can indicate a failing belt or pulley.
Performance Issues Caused by Timing Wear
A deteriorating timing component disrupts the synchronisation between the crankshaft and camshaft. Common engine symptoms include rough idling, misfires, and sluggish acceleration. The engine may run unevenly, lose power, or even fail to start if the timing slips significantly. Decreased fuel efficiency often follows as the engine’s combustion process becomes less effective.
Other Tell-tale Signs
Apart from noises and performance drops, an oil leak near the engine can signal a failing timing cover seal or gasket, sometimes related to a worn timing belt or chain. Warning lights on the dashboard, such as the check engine light, may also appear. Left unaddressed, a failing timing component can catastrophically damage valves, pistons, and other engine internals.
Timely recognition of these symptoms is key to engine health and reliability. Regular observation, coupled with professional inspections, can prevent costly failures and extensive repairs.
Maintenance and Replacement
Understanding Replacement Schedules
Timing systems need careful maintenance to run efficiently. Timing belts typically require replacement every 60,000 to 100,000 miles, but this varies by vehicle type and manufacturer. Always check your owner’s manual for the exact interval. In contrast, timing chains do not always have a mandated replacement period. They are built for durability and often last the life of the engine. Yet, components such as tensioners or guides may still wear out and need attention over time.
Importance of Manufacturer Guidelines
Following the timing system service interval set out by the manufacturer is essential. Skipping or delaying timing belt replacement can cause the belt to snap unexpectedly. On engines known as “interference engines,” a broken timing belt may lead to the pistons colliding with the valves, causing severe and often irreparable engine damage. Timing chains, although more robust, can still stretch or suffer from worn tensioners, leading to timing problems if ignored.
Catastrophic Consequences of Timing Failure
Timing component failures usually occur without warning. If the timing belt or chain fails while the engine is running, internal engine damage is almost certain and can be very expensive to repair or may even require a full engine replacement. Regular maintenance and pre-emptive replacement are far more cost-effective and reliable than emergency repairs or engine rebuilds.
Proper care of your timing components keeps your engine healthy and your vehicle reliable. Understanding the signs of wear and acting early can prevent unexpected breakdowns and expensive repairs.
Conclusion: Making the Right Choice for Your Vehicle
When selecting between a timing belt and a timing chain, there are several factors to weigh. Timing belts, typically made of reinforced rubber, are quieter and less expensive to produce and replace, but they require replacement at regular intervals, usually every 60,000 to 100,000 miles. In contrast, timing chains are built from metal and can often last the life of the engine, though they may need maintenance or replacement in very high-mileage vehicles or under particular strain.
Driving habits and vehicle usage have a significant impact on how long these components last. Smooth acceleration and gentle braking can help prolong the life of both belts and chains, while frequent stop-and-go driving, heavy towing, or driving in extreme conditions can accelerate wear. Routine maintenance, such as regular oil changes for engines with chains, is crucial in preventing premature wear.
Understanding your engine’s timing system is essential. Familiarise yourself with your vehicle’s maintenance schedule and watch for any early signs of wear. Proactive care helps ensure your engine operates at its best and avoids the risk of major damage or expensive repairs.
